Inverted Pendulum Project Log #1

Work-in-progress living document

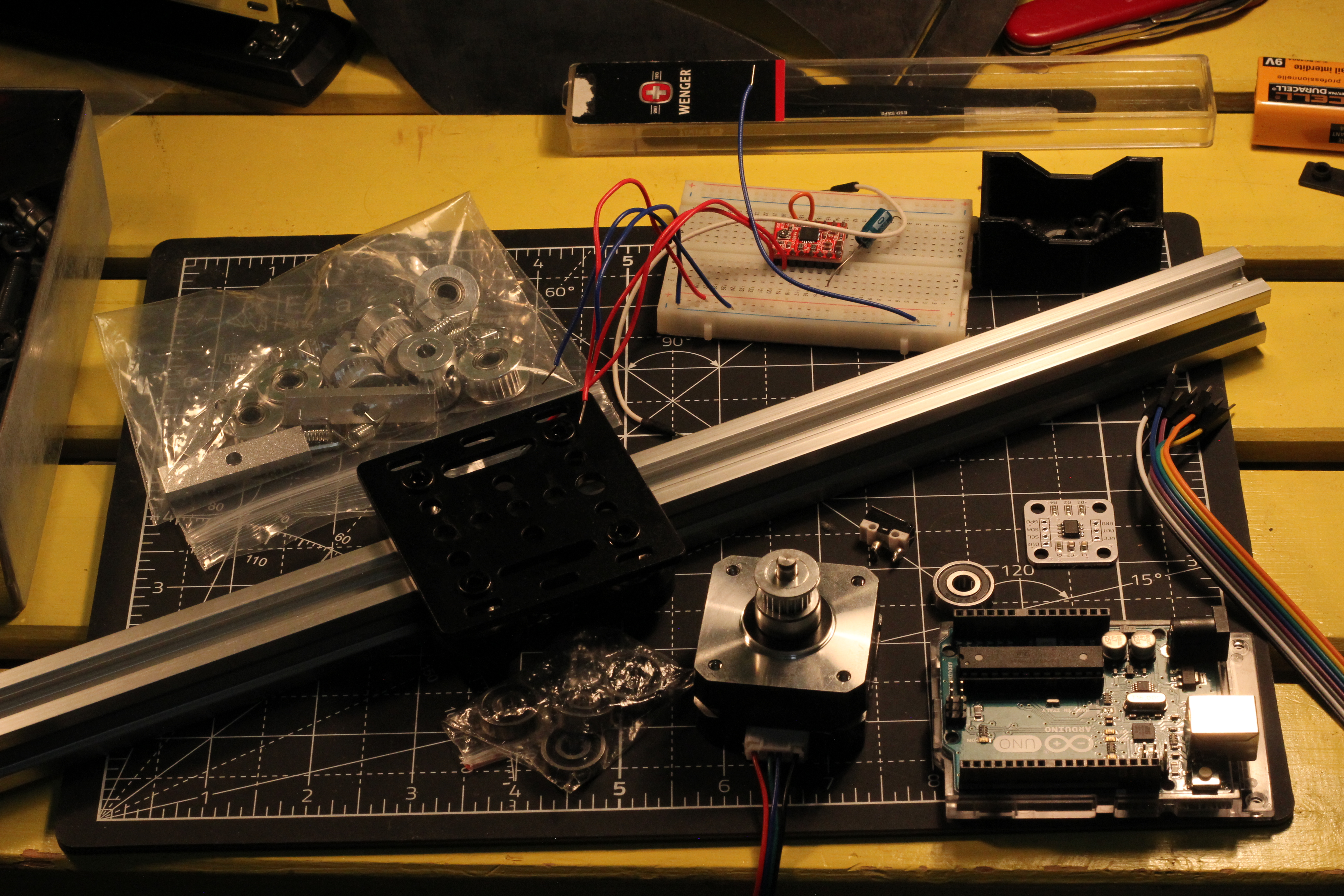

Inverted pendulum supplies
2020 aluminum extrusion gantry & parts

Inspiration

Having recently studied robotics in greater depth, I wanted to begin a project that would apply my knowledge of control theory--the science of making machinery bend to your will to using sensors and physics.

This led me to the perfect choice--an inverted pendulum. It's a wonderful Renaissance engineering challenge, featuring a bit of everything: mechanical design, motor control, sensors, and simulation.

For inspiration on how to make this happen, I looked to others' previous attempts:

Bill of Materials

Part Quantity Link
42x42x23mm Nema 17 Stepper Motor (17HS08-1004S) 1 Amazon
A4988 Stepper Motor Driver 1 DigiKey
400mm 2020 Aluminum Extrusion 1 Amazon
2020 V-Slot Gantry 1 Amazon
AS5600 Magnetic Encoder 1 Amazon
GT2 Timing Belt + Timing Pulley 1 Amazon
625-2RS Ball Bearing 2 Amazon
SPST Limit Switch 1 N/A
Arduino Uno Rev3 1 Arduino
